Maximum Control and Configurability.

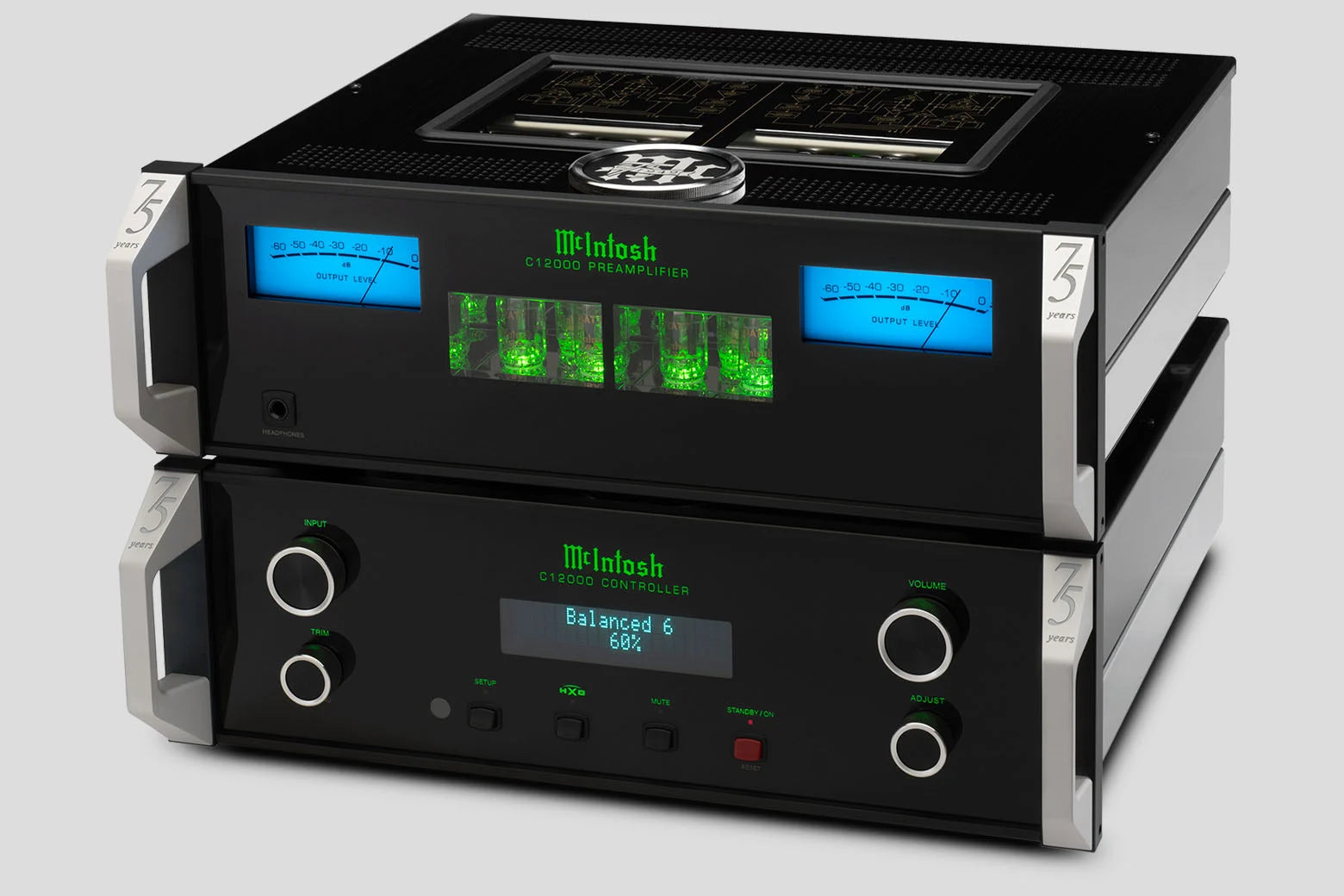

The C12000 Preamplifier is the next generation of our acclaimed two-chassis preamplifier design. The two-chassis design allows the audio section to be completely separated from the control and power sections. The absolute isolation of a preamplifier's two main functions – control and sound – is achieved by this unusual but effective design. Splitting these primary purposes of a preamplifier up into separate chassis will deliver the purest sound reproduction possible.

Specifications

• Number of Channels

  2

• Total Harmonic Distortion

  High Level: 0.005%
  Phono: 0.05%

• Frequency Response

  +0, -0.5dB from 20Hz to 20kHz
  +0, -3dB from 10Hz to 100kHz

• Maximum Volts Out (Balanced / Unbalanced)

  20V RMS / 10V RMS

• Sensitivity High Level (Balanced / Unbalanced)

  900mV / 450mV

• Sensitivity Phono (Moving Coil)

  0.25 – 2.5mV

• Sensitivity Phono (Moving Magnet)

  5 – 10mV

• Signal To Noise Ratio (High Level)

  107dB

• Signal To Noise Ratio (Moving Coil)

  79dB

• Signal To Noise Ratio (Moving Magnet)

  83dB

• Voltage Gain (High Level)

  15dB

• Voltage Gain (Moving Coil)

  58 – 64dB

• Voltage Gain (Moving Magnet)

  40 – 46dB

• Input Impedance (Balanced / Unbalanced)

  50K ohms, 25K ohms

Connectivity

• Balanced Input

  6

• Unbalanced Input

  4

• Phono Input Moving Coil

  Up to 2 (unit has 2 Phono inputs; each is user configurable as either Moving Coil or Moving Magnet)

• Phono Input Moving Magnet

  Up to 2 (unit has 2 Phono inputs; each is user configurable as either Moving Coil or Moving Magnet)

• Upgradeable Digital Audio Module

  No

• Digital Coaxial Input

  0

• Digital Optical Input

  0

• Digital MCT (DIN) Input

  0

• Digital USB Input

  0

• HDMI (ARC) Input

  0

• Digital AES/EBU Input

  0

• Balanced Fixed Output

  0

• Balanced Variable Output

  2 (1 for Solid State, 1 for Vacuum Tube)

• Unbalanced Fixed Output

  1

• Unbalanced Variable Output

  1

• Headphone Output

  1/4" High Drive with Headphone Crossfeed Director (HXD®)
  Selectable headphone impedances of: 16 ohms - 40 ohms, 40 - 150 ohms, 150 - 600 ohms

• Input Level Match

  Yes, +/- 6dB

• Home Theater PassThru

  Yes

• Unbalanced Analog Connector Type

  Premium gold-plated solid brass

• Service Port

  1

Control

• Tone Controls

  No

• Tone Bypass and Input Assign

  No

• RS232 Control Input

  Yes

• Power Control Output

  1 Main, 2 Output, 4 Trigger

• Rear Panel Data Port

  8

• Rear Panel IR Sensor Input

  Yes
