The Cayin Jazz 80 is an all-in-one tube integrated amplifier designed for audiophiles seeking the ultimate blend of classic tube amplification and modern wireless connectivity. This finely crafted amplifier is engineered to deliver exceptional sound quality across various speaker setups while also featuring Bluetooth/LDAC support for wireless playback. The Jazz 80 is hand-built with precision, offering flexibility, power, and a variety of features tailored for optimal performance in any audio environment.

• High-Quality Design and Build

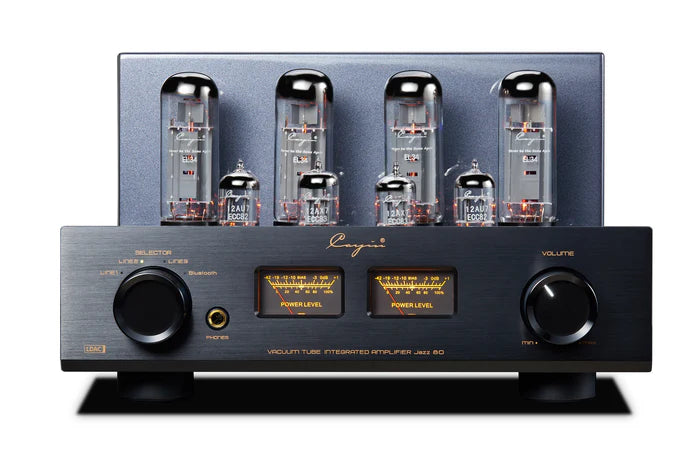

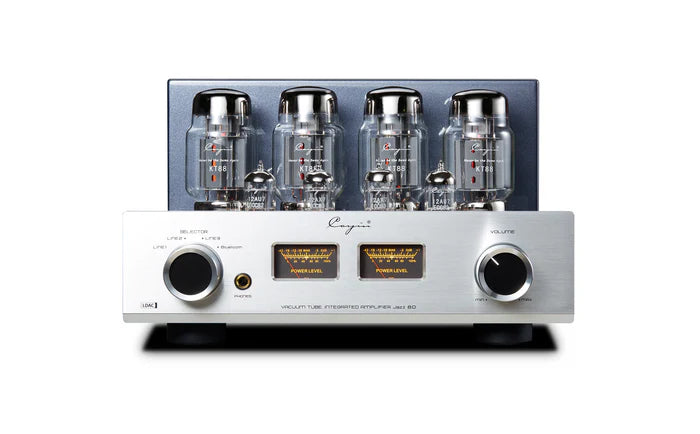

  • The Cayin Jazz 80 is built with a deep, glossy case that not only adds elegance but also protects the internal components. The amplifier is fitted with four KT88 output tubes (or EL34 as an option) for power amplification and a combination of 12AU7 and 12AX7 tubes for preamplification and phase splitting.

• Output Power and Modes

  • Ultralinear and Triode Modes:
    • Ultralinear Mode: 2×40 watts for dynamic and powerful sound.
    • Triode Mode: 2×20 watts for a softer, more detailed sound.
    • Switching between these modes is made easy with a dedicated toggle switch on the front panel.
  • Bias Adjustment:

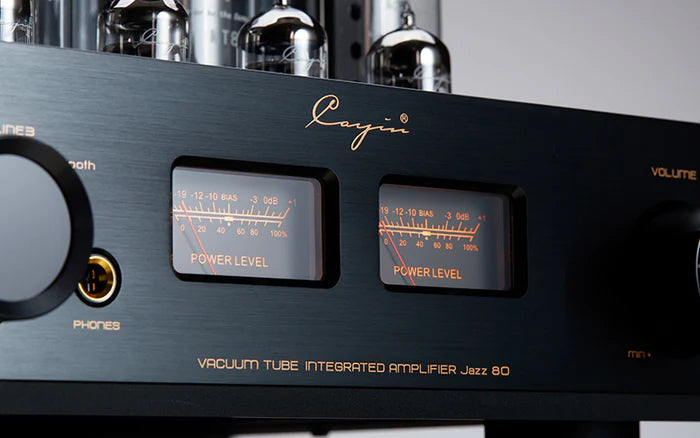

    • The amplifier features a bias adjustment circuit with VU meters and trim potentiometers for precise tuning of each tube. Users can monitor and adjust the bias with ease, ensuring the amplifier operates at peak performance.

• Connectivity and Inputs

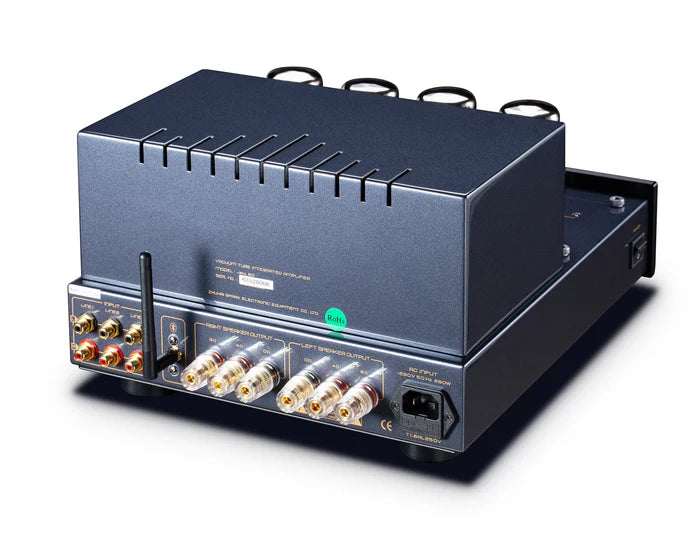

  • The Jazz 80 offers three analog inputs for versatile connectivity, with gold-plated speaker terminals designed to accommodate a range of speaker cables (4 ohm and 8 ohm).
  • A 6.5mm headphone output ensures that high-quality sound is delivered through most audiophile headphones.

• Bluetooth with LDAC Support

  • The Bluetooth module allows for seamless wireless playback via LDAC codec, delivering high-resolution audio at up to 990 kbps. Pairing is simple and efficient, making the Jazz 80 a modern audio hub for wireless devices such as smartphones, tablets, and laptops.
