- Toroidal Isolation Transformer
- Quick-acting Surge Suppression Module
- Connect up to 12 components

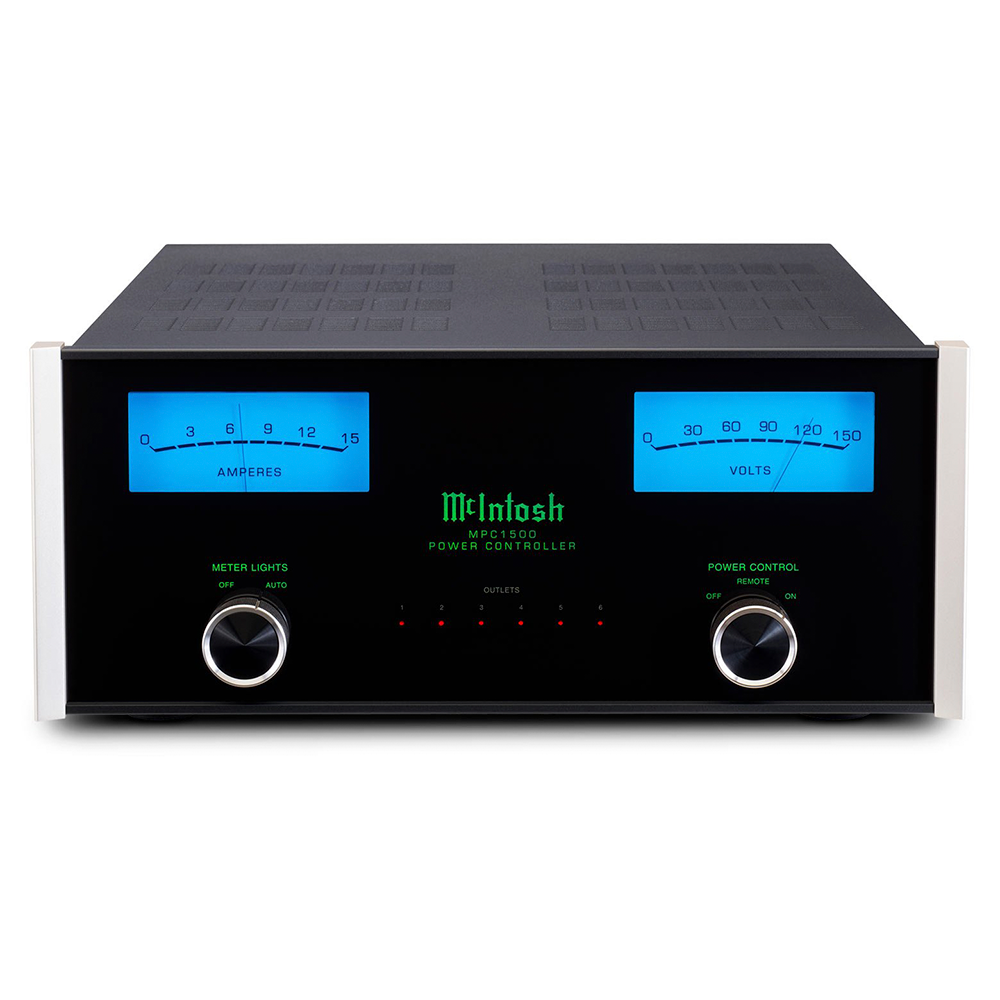

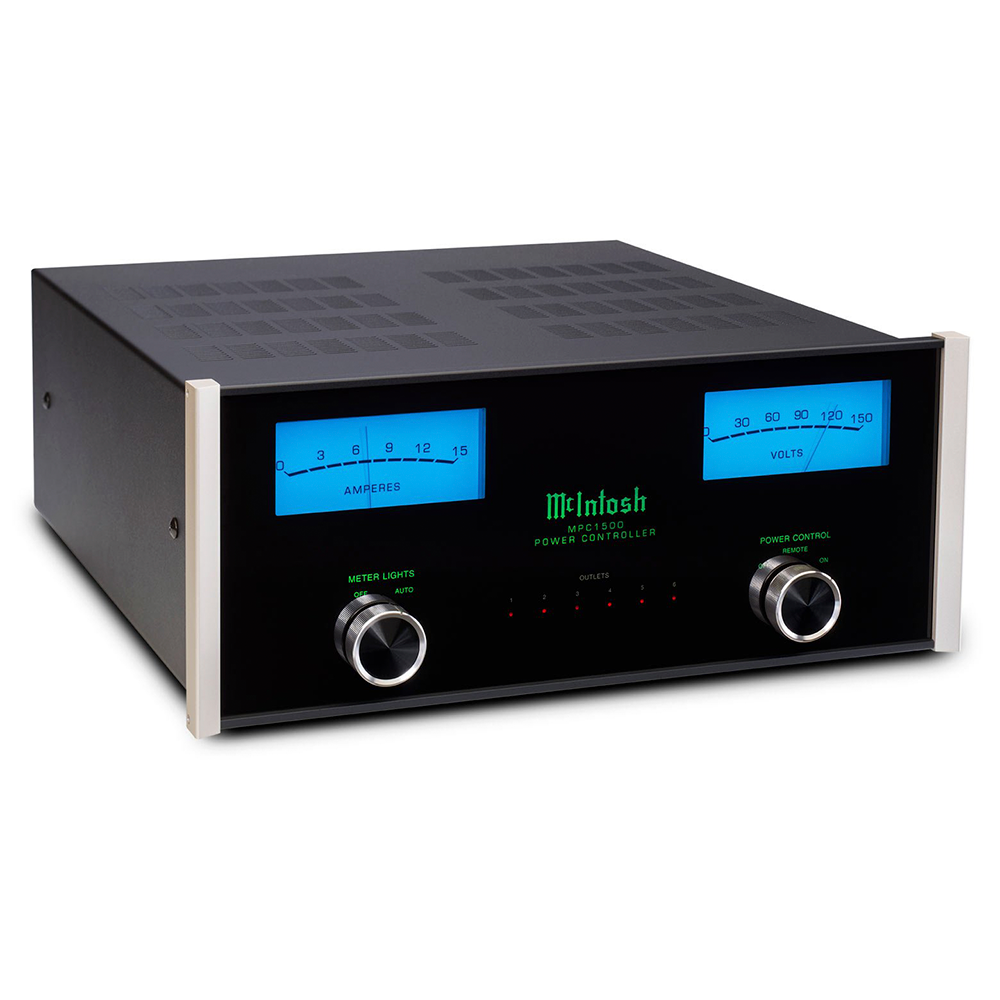

Today’s AC power is littered with byproduct from the operation of millions of personal computers, satellite set-top boxes and myriad other noise inducing devices. The new MPC1500 Power Controller provides total isolation, low noise, and maximum power transfer to enable the best performance possible from your McIntosh components. The MPC1500 features a large torroidal transformer that has been specially wound to act as a low pass filter to remove unwanted harmonic noise on the incoming AC line, while a quick-acting surge suppression circuit features a clamping voltage onset of about 2V above peak nominal voltage for the best possible product protection.
Specifications
Electronic Specifications
- Load Regulation
- ± 2.5 %
- Output Voltage
- With Type B (a.k.a. NEMA 5-15R) receptacles:
120 Volts AC Nominal (100 Volts AC Nominal for Japan only)
With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
230 Volts AC Nominal
- Power Requirement
- With Type B (a.k.a. NEMA 5-15R) receptacles:
120 Volts ~60Hz (100 Volts ~50/60Hz for Japan only)
12.0 Amps (max)
1440 Watts (max) (1200 Watts (max) for Japan only)
With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
230 Volts ~50/60Hz
6.0 Amps (max)
1380 Watts (max)
General Specifications
- AC Power Line Protection
- Specially wound toroidal isolation transformer
- Surge Suppression Type
- Quick-acting surge suppression module
- Number of Receptacles

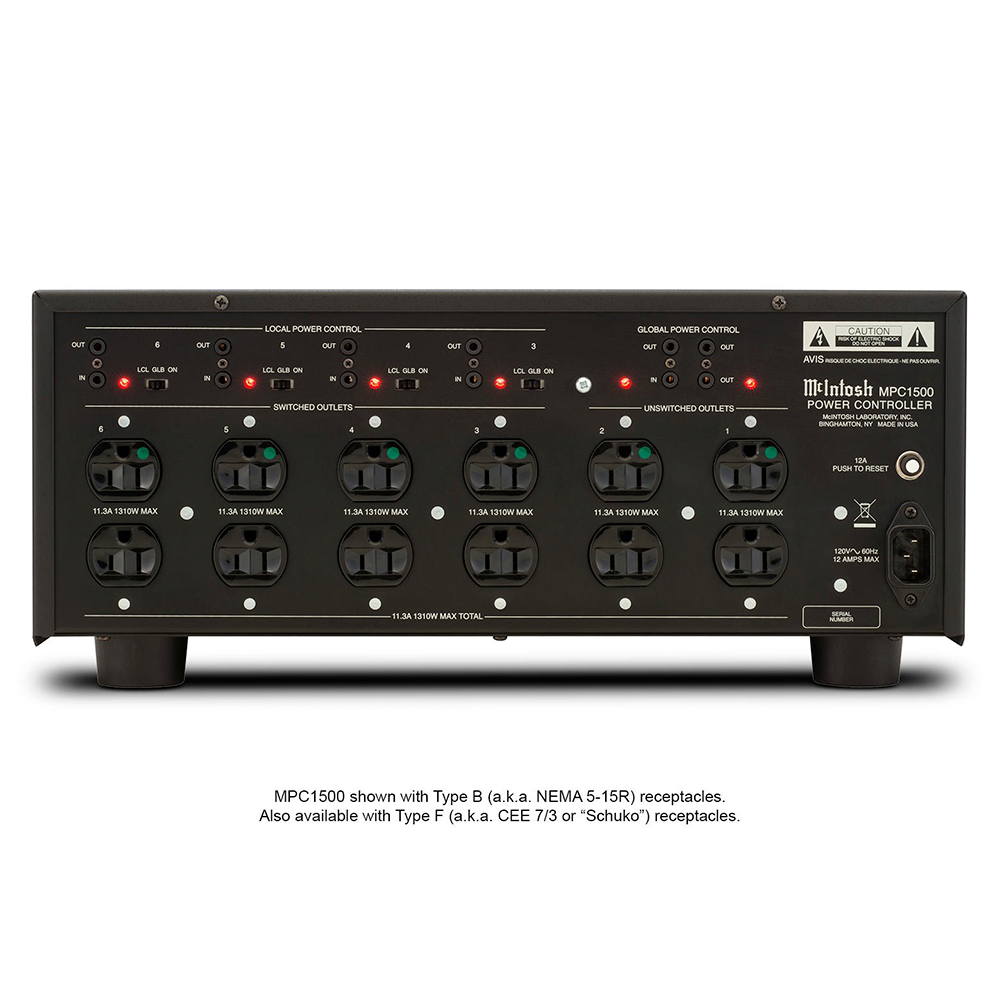

- With Type B (a.k.a. NEMA 5-15R) receptacles:
6 medical grade duplex receptacles
With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
6 high quality single receptacles
- Number of Always ON Receptacles
- 2
- Number of Programmable Receptacles
- 4
- Meters
- 1 for Amps, 1 for Volts
- Meter Light Switch
- Yes
Weights & Dimensions
- Dimensions (W x H x D)
- 17-1/2" (44.45cm) x 7-5/8" (19.37cm) (including feet) x 22" (55.88cm) (including front panel, knobs and cables)
- Weight
- 87 lbs (39.46 kg)
- Shipping Weight
- 105 lbs (47.63 kg)
