SUMMIT HI-FI AMPLIFIERS - INTRODUCING OUR HOME BRAND

Summit Hi-Fi  "A7" - 7 Channel Toroidal  Power Amplifier

Introducing the Summit Hi-Fi New 7-Channel Amplifier with Two Toroidal Power Supply – a groundbreaking audio masterpiece that combines cutting-edge technology with timeless design to elevate your listening experience. Our team has dedicated years of hard work and passion to craft an amplifier that not only delivers powerful performance but also captivates with its aesthetic appeal.

Key Features:

1. Powerful Performance: All Channel Driven: Class A/B Amp

   • Peak Power at 8 ohms reaches an impressive 350 watts, and at 4 ohms, it peaks at an astounding 400 watts, ensuring a thrilling audio experience.
   • Delivers 200+ watts per channel at 8 ohms, all channels driven, ensuring a robust and immersive audio experience.
   • Achieves 250+ watts per channel at 4 ohms, all channels driven, for dynamic and impactful sound reproduction.

2. Toroidal Power Supply:

   • The amplifier is equipped with a high-quality two-toroidal power supply, enhancing efficiency and providing a clean, stable power source for superior audio performance.

3. Versatile Connectivity:

   • Offers both unbalanced and balanced connectivity options, catering to a wide range of audio sources and ensuring compatibility with various devices.

4. LCD Display with Retro Meters:

   • Features a 9-inch wide LCD screen that not only adds a touch of modern elegance but also serves as a canvas for various styles of digital retro meters and a retro-spectrum display.
   • Enjoy a mesmerizing light show synchronized with your favorite tunes, creating a warm and visually immersive ambiance.

5. Individual Heat Sinks:

   • Each module of the amplifier is equipped with its own heat sinks, effectively dissipating heat and ensuring optimal performance even during extended listening sessions.

6. Passionately Crafted:

   • We take pride in our years of hard work and dedication to bring you a product that represents the pinnacle of audio engineering. Our commitment to excellence is reflected in every aspect of the Summit Hi-Fi Amplifier.

7. Affordable Luxury:

   • At Summit Hi-Fi, we are committed to providing our customers with the best audio experience at affordable prices. Our amplifier is a testament to our dedication to delivering value without compromising on quality.

Experience the Summit Hi-Fi New 7-Channel Amplifier and let the harmonious blend of power, aesthetics, and craftsmanship redefine your audio journey. Immerse yourself in the warmth of music and discover a new level of sonic excellence with our meticulously designed amplifier.

Output:

• Peak Power:   7x 350W/8 ohms & 7x 400W/4ohms
• Power All Channel Driven RMS: 7x 200+W/8 ohms & 7x 250+W/4ohms
• THD+N (Total Harmonic Distortion + Noise): 0.003% at 100W power output
• Frequency Response: 20Hz - 20kHz for 0.5dB
• Signal-to-Noise Ratio (SNR): 105dB at 1kHz at 200W power output

Damping Factor @ 8ohms

• >300

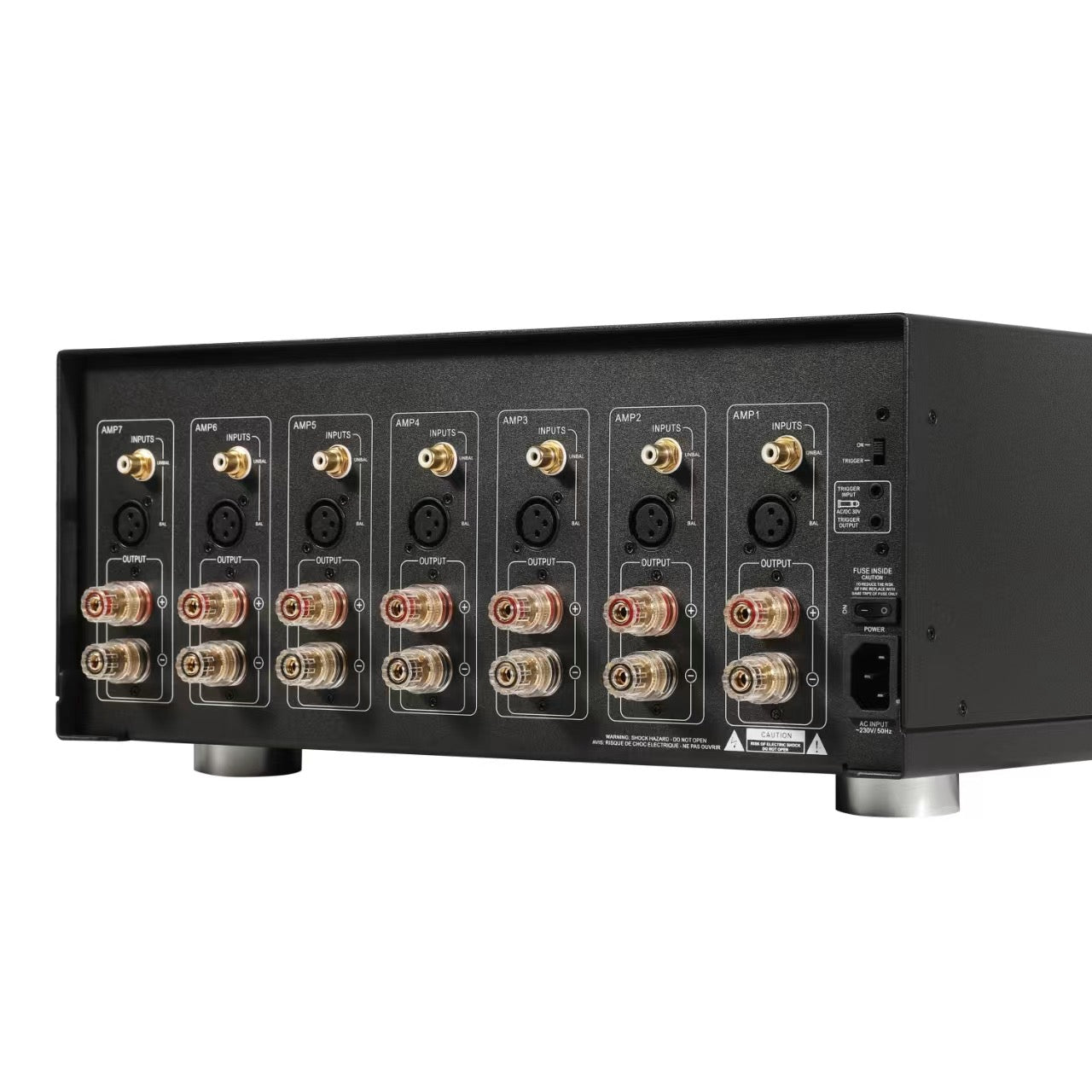

Connections:

• 7x line level RCA input
• 7x line level balanced XLR input
• 1x Trigger input & output

Input Sensitivity:

• 700mV at RCA input
• 1.4V at XLR input

Weight:

• Weight: 36.5kg/80.47Lb
• Crate Shipped Weight: 42kg/92.58Lb

Dimensions:

• Width 435 mm - 17.13"
• Height 205mm - 8.07" ( Including Feet )
• Deep 455mm - 17.91" ( Including Terminals)

Power Requirement:

• Main Voltages: 230V/115V internally set or 100V optional AC 50/60Hz
• 15 amp & 20 amps compatible, <0.5W in standby

Accessories :

• Power Cable

Manual:

• Manual Included

Warranty:

• Don't just listen to music; experience it with Summit Hi-Fi, where the joy of audio excellence is complemented by the security of a 3-year warranty. Elevate your expectations, and let Summit Hi-Fi redefine the way you listen to music – with a promise that lasts for years to come.
