- A modern home audio system for modern lifestyles
- Turntable, preamplifier and amplifier all in one
- Includes Bluetooth® and auxiliary inputs
- Just add your music and speakers
At first glance, the McIntosh MTI100 Integrated Turntable may look like it’s just a turntable, but a closer look will reveal that it is in fact so much more. Truly a one-of-a-kind product, it is designed for those who want maximum flexibility in their home audio system but don’t want – or don’t have the space for – a large audio system in their home. With all the built-in connectivity the MTI100 offers, it can become the center piece of a modern home audio system for modern lifestyles. Simply add your favorite speakers of choice (such as our XR50 bookshelf or XR100 floorstanding speakers) and you’ll have a complete and comprehensive audio system.

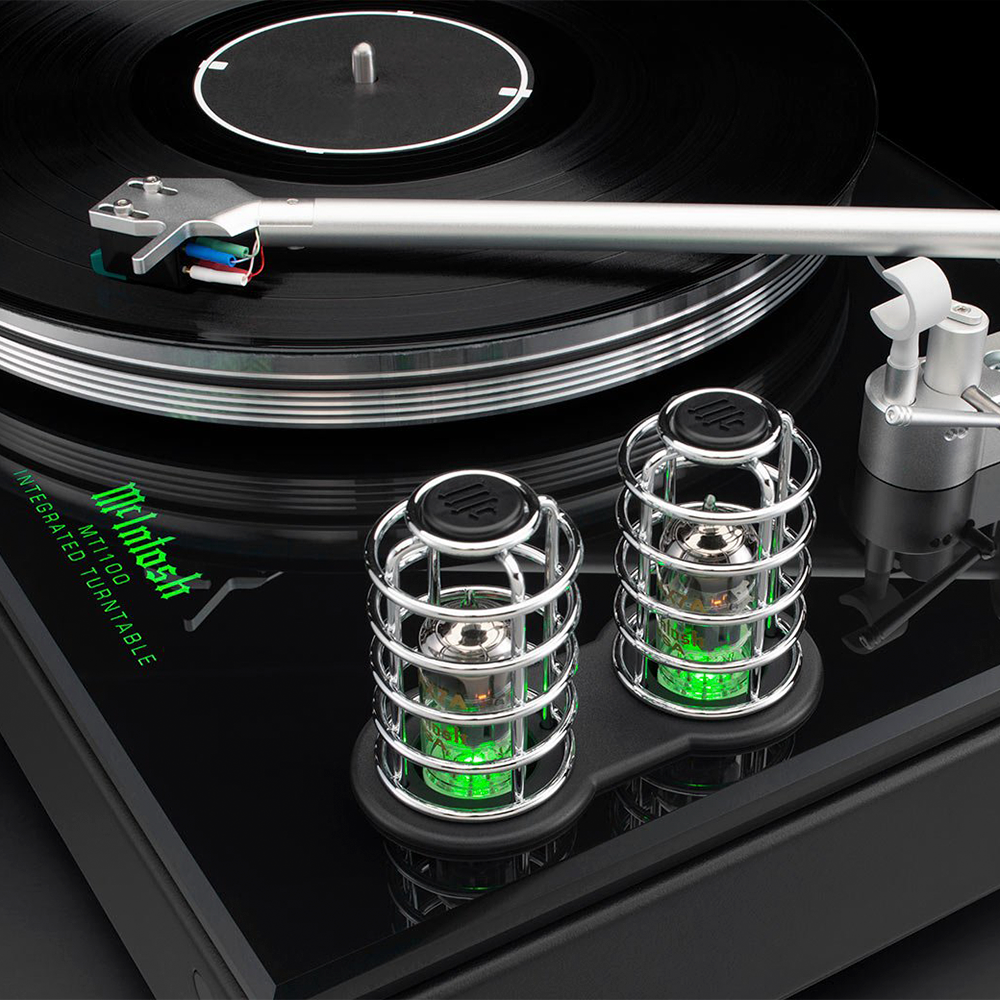

Besides the turntable that plays both 33-1/3 and 45 rpm vinyl records, the MTI100 also includes a power amplifier, a vacuum tube preamplifier section, a shielded phono preamplifier, an unbalanced auxiliary input, digital audio coaxial and optical inputs, a Bluetooth receiver, a subwoofer output, stereo speaker outputs for sharing your music with friends, and a headphone jack for personal listening.

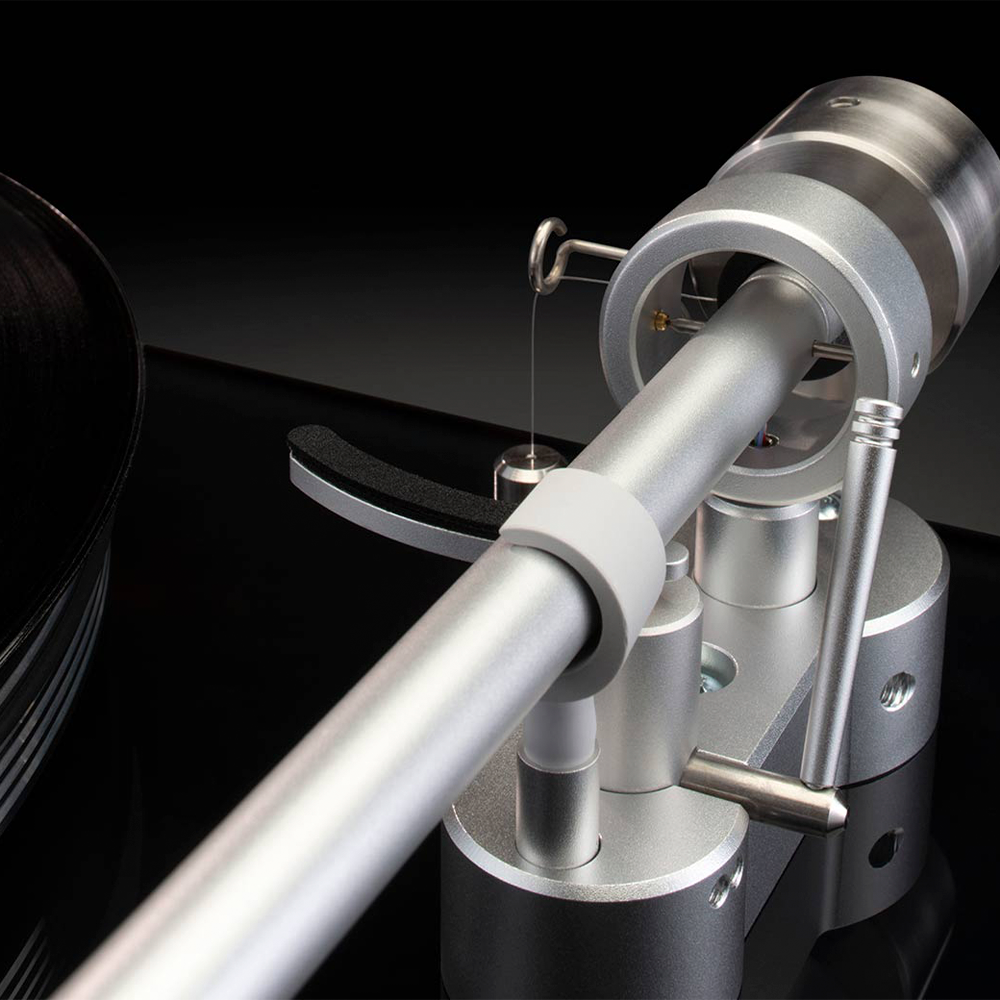

McIntosh MTI100 Integrated Turntable The 7 pound (3.18 kg) machined aluminum platter resides on the top of the unit. This and the matching machined aluminum tonearm with anti-skate sit atop a 3/8” (9.5mm) thick piece of glass – the same glass found in the front panels of our larger amplifiers; this in turn sits atop a custom 1/4” (6.35mm) thick metal plate that adds stability. The combined heftiness of both the platter and metal plate helps resist and absorb noise that could be caused by external vibrations.
Specifications
Cartridge Specifications
- Cartridge Type
- Moving Magnet
- Output Level
- 4mV at 1kHz
- Load Impedance
- 47k Ohms
- Frequency Response
- 12Hz to 30kHz
- Channel Separation
- 30dB at 1kHz
- Compliance
- 12 x 10-6 cm/dyne
- Recommended Tracking Force
- 2.0 g
- Channel Difference
- Less than 1dB at 1kHz
- Total Mass
- 6.5 g
- Stylus
- Elliptical
- Cantilever Material
- Aluminum
Tonearm Specifications
- Bearing
- Lateral type bearing
- Arm Tube
- Damped machined aluminum
- Counterweight
- Concentric
- Adjustments
- None
Turntable Specifications
- Playback Speeds
- 33-1/3 and 45 rpm
- Motor Type
- Permanent magnet AC synchronous
- Speed Control
- Manual speed change via a 2 speed pulley
- Platter
- Aluminum
- Platter Bearing
- Oil bath bearing with a high performance polyetheretherketone (PEEK) thrust disc and machined graphite impregnated brass bushings
- Signal To Noise Ratio
- 35dB - 40dB
- Wow & Flutter
- 0.1%
Connectivity
- Stereo Outputs Unbalanced
- 1 (bridged to AMP IN)
- Stereo Inputs Unbalanced
- 1
- Digital Coaxial Input
- 1
- Digital Optical Input
- 1
- Subwoofer Output
- 1
- Wireless Input
- High Definition Bluetooth 4.2
Control
- Power Control Input
- 0
- Power Control Output
- 1
- Platter Light
- N/A
- Speed Control Fine Adjustment
- No
Electronic Specifications
- Power Output per Channel
- 50 Watts into 8 Ohms
80 Watts into 4 Ohms
- Number of Channels
- 2
- Speaker Impedance
- 4 or 8 Ohms
- Rated Power Band
- 20Hz to 20kHz
- Total Harmonic Distortion
- 0.5% (Amplifier)
0.2% (Preamplifier)
- Dynamic Headroom
- 1.0dB (8 Ohms)
1.3dB (4 Ohms)
- Frequency Response +0,-0.7dB
- 20Hz to 20kHz
- Signal To Noise Ratio (Moving Magnet)
- 75dB
- Signal To Noise Ratio (High Level)
- 90dB
- Damping Factor
- 8 Ohms: >200
4 Ohms: >100
- Maximum Output (Balanced / Unbalanced)
- 9V Unbalanced
General Specifications
- Dust Cover Included
- No
Weights & Dimensions
- Dimensions (W x H x D)
- 19-1/4” (48.9cm) x 6-3/4” (17.15cm) x 14” (35.6cm)
- Weight
- 33.5 lbs (15.2 kg)
- Shipping Weight
- 40.5 lbs (18.4 kg)
