Fosi Audio ZD3 Balanced DAC & Preamplifier
The Fosi Audio ZD3 is a powerful and feature-rich balanced DAC and preamplifier designed to meet the demands of audiophiles and hi-fi enthusiasts. With ultra-low distortion, high-resolution audio support, and versatile connectivity options, the ZD3 is the perfect centrepiece for your digital audio system.
Key Features:
- ESS 9039Q2M DAC Chip: Delivers precise, dynamic, and transparent sound with ultra-low distortion and high dynamic range.

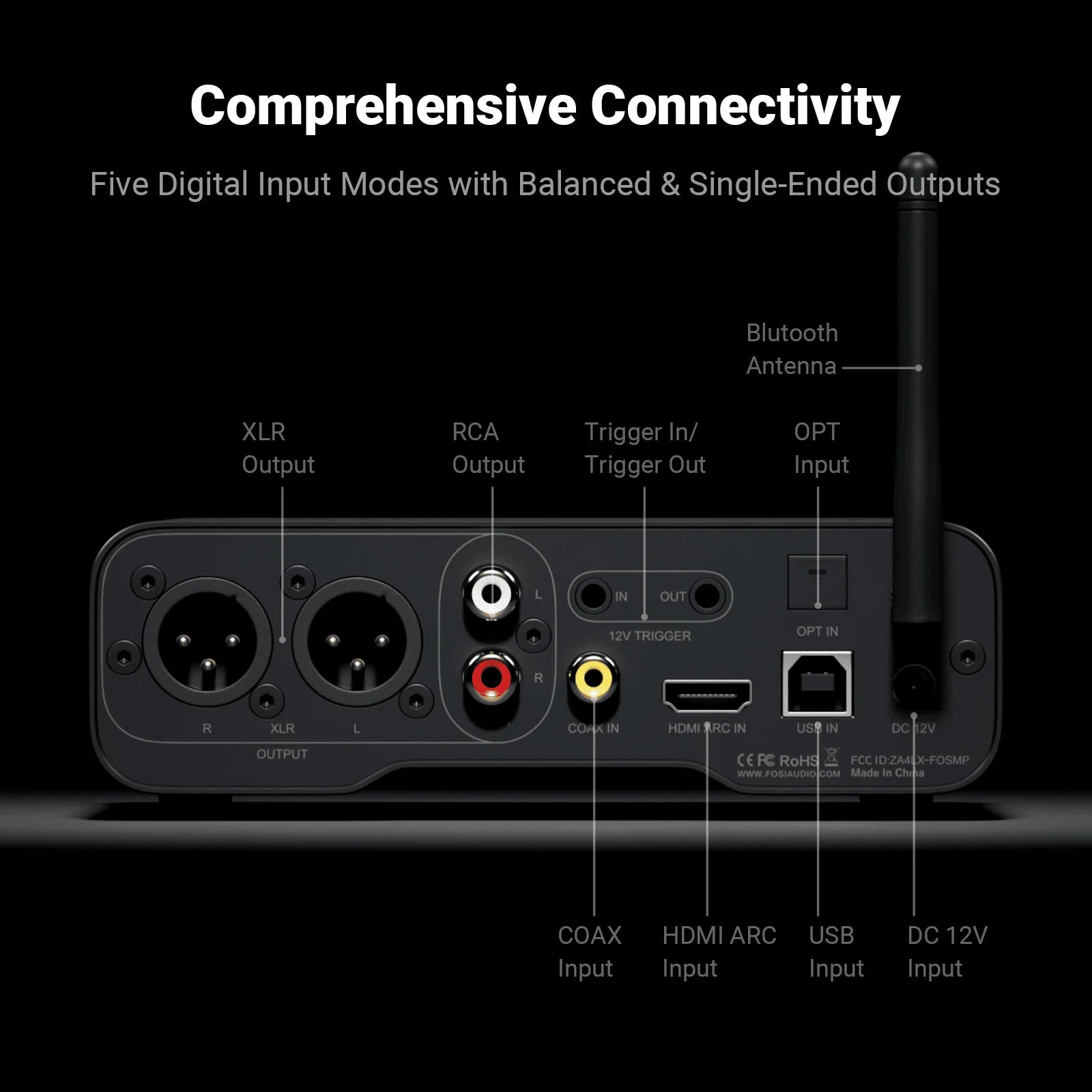

- Multiple Inputs: Accepts USB, HDMI ARC, Optical, Coaxial, and Bluetooth 5.0 sources for seamless integration with computers, TVs, game consoles, and mobile devices.
- Balanced and Unbalanced Outputs: Offers both XLR (5Vrms) and RCA (2.5Vrms) outputs to connect to a wide range of amplifiers and powered speakers.
- High-Resolution Audio Support: Supports PCM up to 32-bit/768kHz and DSD512 over USB for pristine, studio-grade playback.
- Bluetooth 5.0 with High-Quality Codecs: Supports aptX HD, aptX, AAC, and SBC for smooth, high-resolution wireless streaming.
- Op-Amp Rolling: Swap out the factory op-amps to fine-tune the sound signature to your taste.
- OLED Display & Remote Control: A 1.5-inch OLED display shows real-time playback data; the included remote offers convenient control.
- Preamp Bypass & Trigger Ports: Bypass the preamp section for pure DAC output or use a 12V trigger in/out for system integration.
Specifications:
- DAC Chip: ESS 9039Q2M
- USB Processor: XMOS XU316
- Bluetooth Chip: Qualcomm QCC3031
- Op-Amp: LME49720 (user-replaceable)
- Inputs: USB, HDMI ARC, Optical, Coaxial, Bluetooth 5.0
- Outputs: XLR Balanced, RCA Unbalanced, 3.5mm Trigger
- Output Level:
- XLR: 5Vrms
- RCA: 2.5Vrms
- Max Sampling Rates:
- USB: PCM 32-bit/768kHz, DSD512
- Optical/Coaxial: PCM 24-bit/192kHz
- Bluetooth: PCM 24-bit/48kHz
- SNR: ≥126dB
- THD+N: <0.00008%
- Dynamic Range: ≥123dB
- Noise Floor: ≤2μV
- Bluetooth Range: Up to 42 ft
- Power Supply: DC 12V / 1.5A
Dimensions & Weight:
- Size: 6.3 x 4.9 x 1.6 inches
- Weight: Approximately 1.5 lb
What’s Included:
- Fosi Audio ZD3 DAC & Preamplifier
- USB Cable
- Power Adapter
- 3.5mm Trigger Cable
- Remote Control (batteries not included)
