Affordable high-end DAC designed for audiophiles

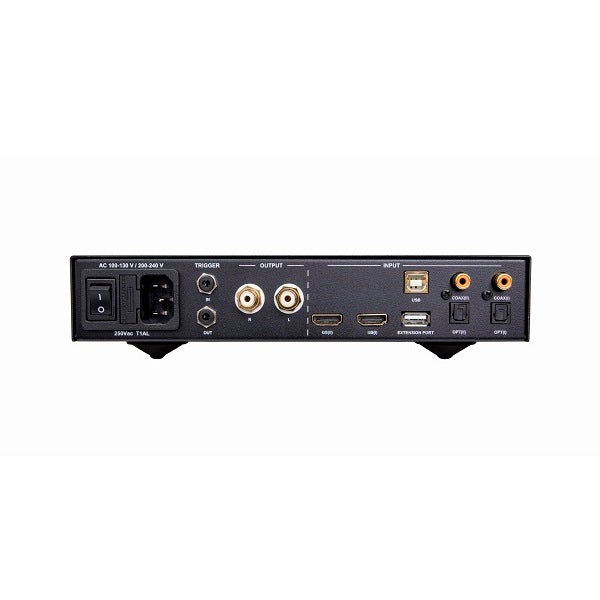

With eight digital (including 2 x IIS/DSD) inputs, RCA stereo output, and decoding capability of PCM 384K, DSD256, the NuPrime DAC-8 is an affordable high-end DAC designed for audiophiles.
Main Features:
- NuPrime SRC IC chip (co-developed with IC vendor) provides DSP processing where Input signals are up-sampled to megahertz before down-converted to the targeted sampling rate with ultra-low jitter and distortion.
- Extension port for Bluetooth receiver and WiFi audio streamer (optional).
- Full microprocessor control with memory retention.
- Supports DSD native playback by ASIO2.1 and DoP method.
- Asynchronous transfer mode.
- Volume adjustment in 99 precise 0.5dB increments.
- Individually adjustable volume on each input for precise level matching of sources.
- Exclusive driver software for Windows.
- Standard driver software for Mac.
- Available in black or silver anodized aluminum finish.
Using Bluetooth and WiFi Audio Receivers and Dongles
NuPrime defined an USB Type-A port to carry S/PDIF data and 5V power for connecting to external wireless audio receiver using just one standard USB cable.
The NuPrime Omnia WR-1, BTR-HD, Stream Mini and Stream Mini DAC wireless receivers have a micro USB port that is compatible this specification. This allow a standard off-the-shelf USB-A to micro USB cable to be used for power for the receiver as well as wireless audio data transfer in S/PDIF format.
Specifications:
Inputs:
- USB: Type B 2.0 Hi-Speed, Windows OS: data stream up to 384KHz/24Bit and Native DSD 256.
USB: Type B 2.0 Hi-Speed, Mac / Linux OS: data stream up to 384KHz/24Bit and DOP DSD 128. - IIS/DSD: Supports PCM 44.1KHz ~ 384KHz/32Bit and DSD 64 ~ DSD 256 data streams.
- OPTICAL: Supports PCM 44.1KHz ~ 192KHz/24Bit and DOP 64.
- COAXIAL: Supports PCM 44.1KHz ~ 384KHz/24Bit and DOP 64 and 128.
- EXTENSION: Supports PCM 44.1KHz ~ 192KHz/24Bit.
Outputs:
- RCA unbalanced outputs: 2 Vrms
General:
- Frequency response: 20 Hz – 20 KHz / ±0.3 dB.
- SNR: > 110 dB.
- THD+N: < 0.0005%.
- Dimensions: 235 mm W x 281 mm D x 55 mm H (including feet)
- Weight: 2Kg
- Worldwide AC voltage: (90VAC~130VAC // 210VAC~ 250VAC) With Voltage Select Switch
- AC Fuse: Slow-blow, 1A, 250VA
