- Moving Coil & Moving Magnet inputs
- Analog outputs + USB for ripping to computer

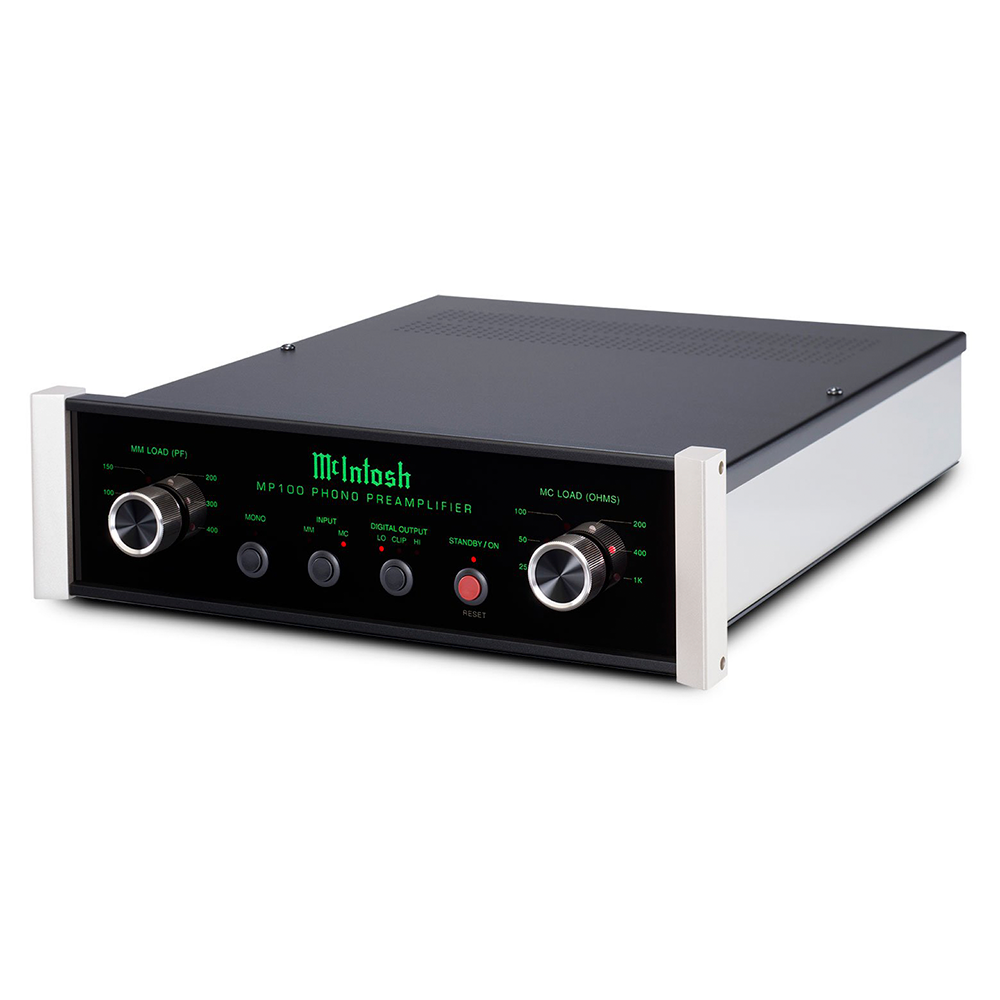

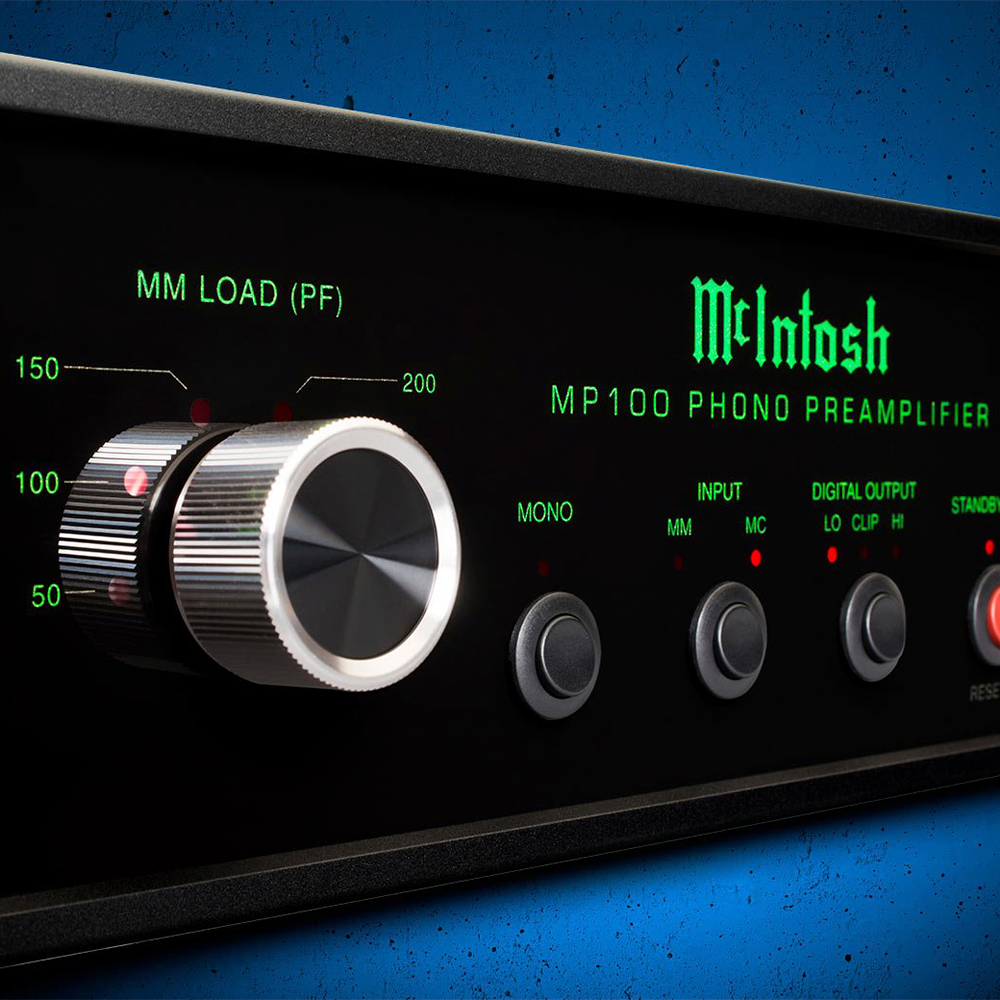

Like all McIntosh products, the MP100 is packed with features designed specifically for the vinyl lover including: Moving Coil and Moving Magnet inputs; Moving Coil and Moving Magnet adjustable loading (6 settings each); balanced and unbalanced analog outputs; optical, coax and USB digital outputs; and a Mono switch for when playing mono records to decrease noise and play the signal correctly. For pure analog use, the digital outputs can be completely disabled and powered down.
Specifications
Electronic Specifications
- Total Harmonic Distortion
- 0.005%
- Frequency Response
- ±0.3dB from 20Hz to 20,000Hz
- Maximum Volts Out (Balanced / Unbalanced)
- 16/8 V RMS
- Input Impedance
- Moving Coil: 25, 50, 100, 200, 400 or 1k Ohms; 470pF
Moving Magnet: 47k Ohms; 50, 100, 150, 200, 300 or 400pF
- Phono Voltage Gain
- Moving Coil: 60dB
Moving Magnet: 40dB
- Signal To Noise Ratio
- Moving Coil: 78dB
Moving Magnet: 80dB
- Maximum Input Signal (Moving Coil)
- 8mV
- Maximum Input Signal (Moving Magnet)
- 80mV
- Maximum Input Signal (Balanced)
- N/A
- Maximum Input Signal (Unbalanced)
- N/A
- Sensitivity Phono (Moving Coil)
- 1mV
- Sensitivity Phono (Moving Magnet)
- 10mV
- Sensitivity (Balanced)
- N/A
- Sensitivity (Unbalanced)
- N/A
- Rated Output
- 2V Balanced
1V Unbalanced
- Output Impedance
- 200 Ohms Balanced
100 Ohms Unbalanced
- Phono Equalization Curves
- 1: RIAA
- Noise Filters
- 0
- Phono Profiles
- 0
Connectivity
- Phono Input Moving Coil
- 1 (adjustable)
- Phono Input Moving Magnet
- 1 (adjustable)
- Phono Input Universal
- 0
- Balanced Line Input
- 0
- Unbalanced Line Input
- 0
- Balanced Fixed Output
- 1 Stereo
- Unbalanced Fixed Output
- 1 Stereo
- Digital Coaxial Output
- 1
- Digital Optical Output
- 1
- Digital USB Audio Output
- 1
- Unbalanced Analog Connector Type
- Standard
Control
- Power Control Input
- 1
- Power Control Output
- 1
Digital Audio Specifications
- Digital Output Sample Rate
- Optical: PCM - 24-bit/96kHz
Coaxial: PCM - 24-bit/96kHz
USB: PCM - 24-bit/96kHz
General Specifications
- Multi-Chassis or Single
- Single
- Output Meters
- No
- Vacuum Tube or Solid State
- Solid State
- Power Consumption (On)
- 8 Watts
Weights & Dimensions
- Dimensions (W x H x D)
- 11.5" (29.2cm) x 3.78125" (9.6cm) x 16.75" (42.5cm)
- Weight
- 8.6 lbs (3.9 kg)
- Shipping Weight
- 9.6 lbs (4.4 kg)
